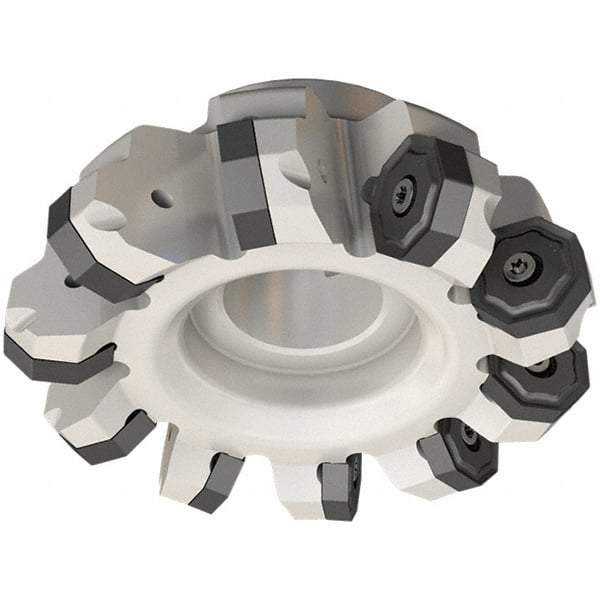

Iscar - 2.99" Cut Diam, 1" Arbor Hole, 0.217" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 5 Inserts, ON.U 0806 Insert, Right Hand Cut, 5 Flutes, Series 16Mill
Item #: 63107874
Brand: Iscar
Model #: 3104601
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.9900 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | ON.U 0806 |
| Series | 16Mill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | F45NM |
| Number of Flutes | 5 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.2450 |
| Maximum Insert Radius (Decimal Inch) | 0.0510 |
| Complete Insert Compatibility | ONHU 080600-N-PL; ONHU 080608 AN-N-HP; ONHU 080608-TN; ONHU 080608-TN-MM; ONHU 0806AN-N-W; ONHU 0806AN-R-W; ONMU 080608 AN-N-HP; ONMU 080608-TN; ONMU 080608-TN-MM; ONMU 080612-HL |
