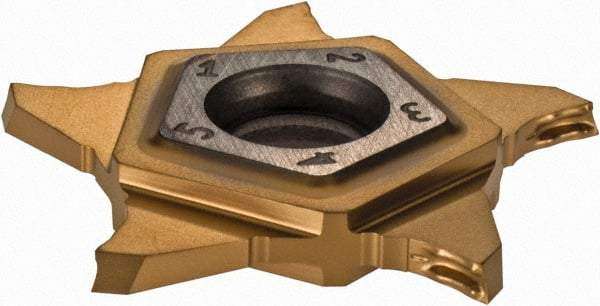

Iscar - PENTA24R150 Z IC1008 Grade, 0.059" Cutting Width, Carbide Cutoff Insert - 15° Right Hand Lead Angle, 0.002" Cnr Rad, TiN/TiAlN Coated
Item #: 63107825
Brand: Iscar
Model #: 6003526
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | PENTA |
| Insert Size | 24R150 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 15 |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0590 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC1008 |
| Coating | TiN/TiAlN |
| Series | PentaCut |
| Chipbreaker | Z |
| Full Radius | No |
| Multi-Use Application | No |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0020 |
| Corner Radius (mm) | 0.05 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Manufacturers Catalog Number | PENTA 24R150Z15D |
