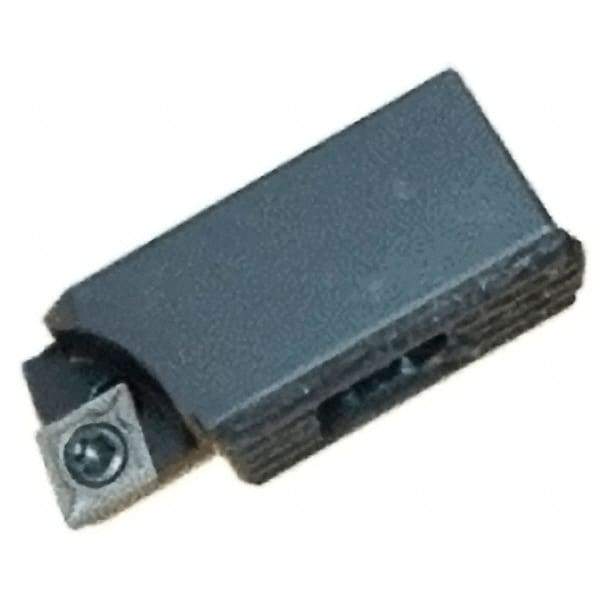

Iscar - Series Itsbore, Right Hand Cut, 50.5mm Min Bore Diam, Boring Cartridge - 13.5mm Back of Bar to Cutting Edge, CCMT 3... Insert, 90° Lead Angle
Item #: 63106579
Brand: Iscar
Model #: 4551108
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Itsbore |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 1.9882 |
| Minimum Bore Diameter (mm) | 50.50 |
| Insert Style | CCMT 3... |
| Boring Head Compatibility | BHE MB; BHF L200; BHF MB |
| Lead Angle | 90 |
| Back of Bar to Cutting Edge (mm) | 13.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5315 |
| Projection (Decimal Inch) | 1.8110 |
| Complete Insert Compatibility | CCGT 3-.004-AS; CCGT 3-0-AS; CCGT 3-1-AS; CCGT 3-2-AS; CCMT 3-0; CCMT 3-0-SM; CCMT 3-1; CCMT 3-1-14; CCMT 3-1-SM; CCMT 3-1T; CCMT 3-2; CCMT 3-2-14; CCMT 3-2-SM; CCMT 3-2T |
