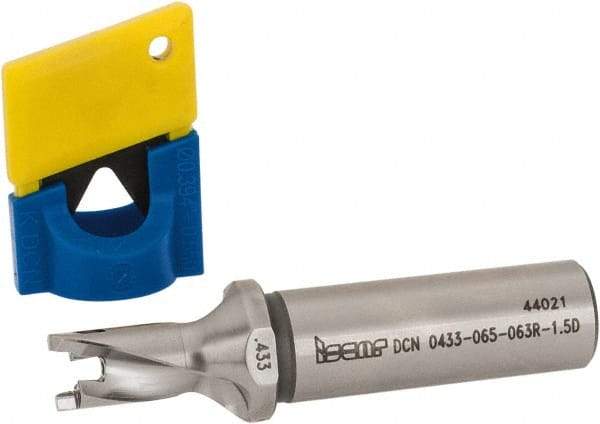

Iscar - 0.433" to 0.449" Diam, 1.5xD, 0.65" Max Depth, 5/8" Shank Diam, 3.19" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICP, iCP-2M Insert, 63103683 Toolholder, Series SumoCham
Item #: 63103683
Brand: Iscar
Model #: 3202625
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4330 |
| Maximum Drill Diameter (Decimal Inch) | 0.4490 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.6500 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICP; iCP-2M |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.3000 |
| Overall Length (Decimal Inch) | 3.1900 |
| Shank Length (Decimal Inch) | 1.8900 |
