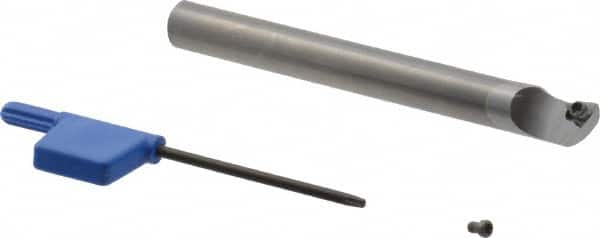

Iscar - 8.8mm Min Bore Diam, 75.7mm OAL, 8mm Shank Diam, MG-SWUC Indexable Boring Bar - WCGT 0201.. Insert
Item #: 63102909
Brand: Iscar
Model #: 3602008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MG-SWUC |
| Series | Isoturn |
| Minimum Bore Diameter (mm) | 8.80 |
| Minimum Bore Diameter (Decimal Inch) | 0.3465 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 75.70 |
| Overall Length (Decimal Inch) | 2.9803 |
| Shank Diameter (mm) | 8.00 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Insert Compatibility | WCGT 0201.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Rake | Positive |
| Center to Cutting Edge (mm) | 4.30 |
| Center to Cutting Edge (Decimal Inch) | 0.1693 |
| Rake Angle | 12 |
| Complete Insert Compatibility | WCGT 020102L; WCGT 020104L |
| Toolholder Material | Carbide |
