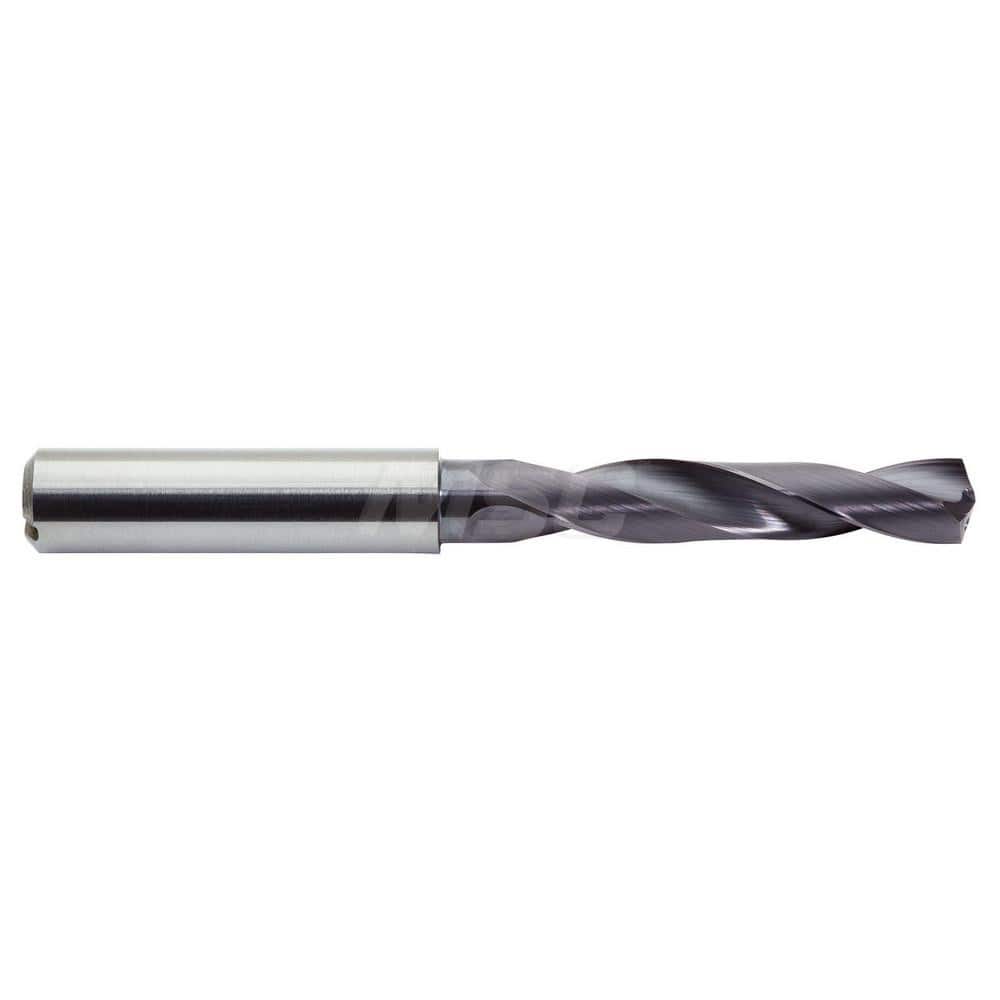

Screw Machine Length Drill Bit: Solid Carbide Coated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series 2XDCS
Item #: 63102339
Brand: M.A. Ford?
Model #: 2XDCS2500A
Product Specifications
| Drill Bit Size (Inch) | 1/4 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Flute Type | Helical |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Decimal Inch) | 3.1100 |
| Series | 2XDCS |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (Decimal Inch) | 0.9450 |
| Shank Length (Decimal Inch) | 1.7710 |
| Drill Point Length (Decimal Inch) | 0.0390 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | +0 to -0.00059 in |
| Flute Length (Decimal Inch) | 1.3390 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
