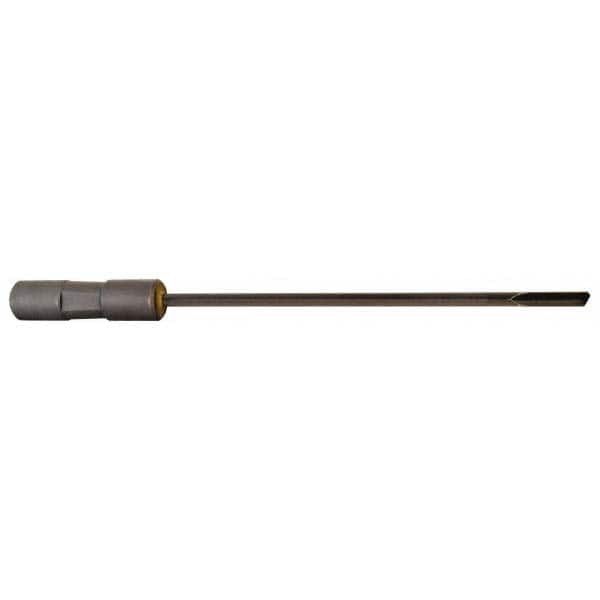

Made in USA - #36, 4" Flute Length, 3" Depth of Cut, Carbide-Tipped Shank, Single Flute Gun Drill
Item #: 08685661
Brand: Made in USA
Model #:
Features and Benefits
Carbide tips cuts faster than high speed steel. The carbide tip is brazed onto the steel head of a shank. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
| Product Specifications | |
|---|---|
| DrillType | Single Flute Gun Drill |
| Drill Size (Decimal) | 0.1065 |
| Drill Size (Wire) | #36 |
| Drill/Shank Material | Carbide-Tipped |
| Flute Length (Inch) | 4 |
| Depth of Cut (Decimal) | 3.0000 |
| Number of Flutes | 1 |
| Coolant Hole Configuration | Round |
| Shank Diameter (Inch) | 1/2 |
| Point Type | N-8 Nosegrind |
| Drill Point Angle | 115 |
| Overall Length (Inch) | 6 |
| Finish/Coating | Bright |
| Cutting Direction | Right Hand |
| Contour Style | R-1 Low Land |
| Drill Diameter Tolerance (Decimal) | +0.0005 to -0.0005 |
| Drill Diameter Tolerance (Metric) | +0.0127 to -0.0127 |
| Web Thinning | Web-Thinned |
| Driver Length (Inch) | 1-1/2 |
