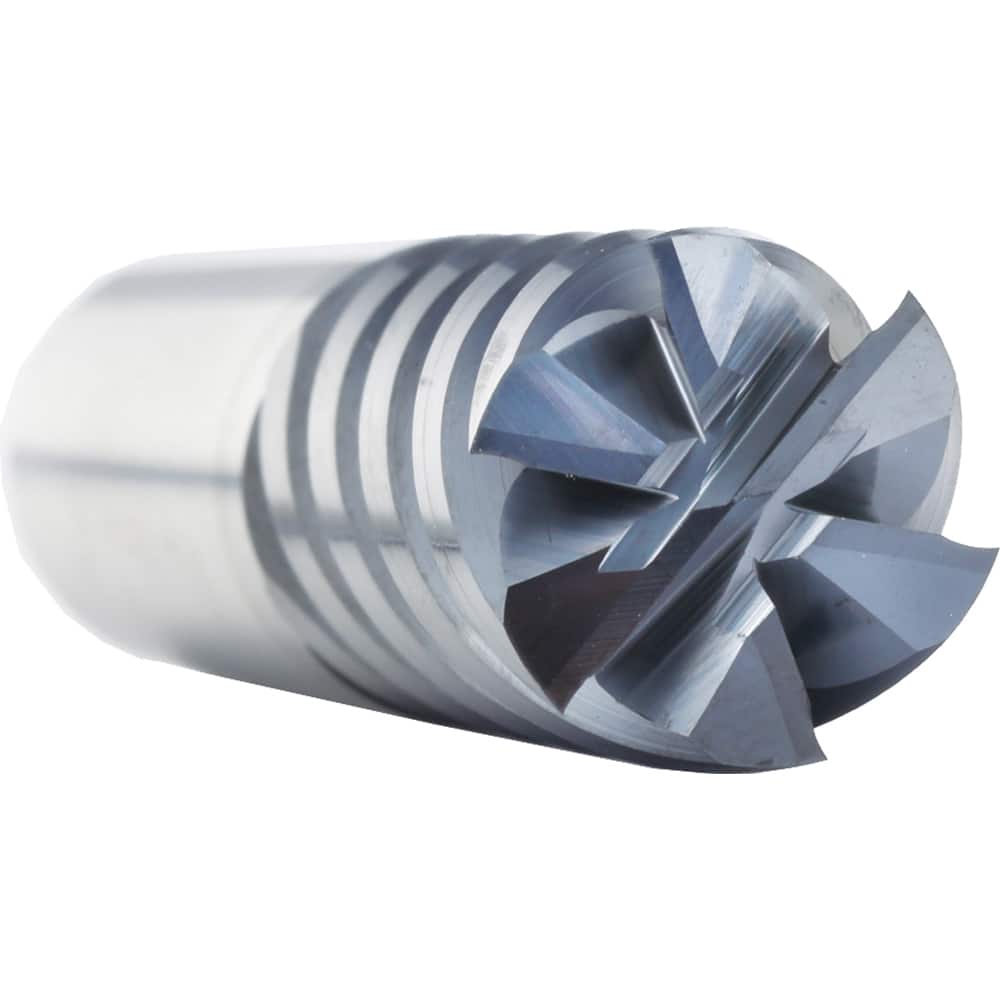

Corner Radius End Mill: 3/4″ Dia, 2-1/4″ LOC, 0.03″ Radius, 3 Flutes 5″ OAL, 3/4″ Shank Dia, 50 ° Helix, AlCrN Coated, Corner Radius End, Centercutting, Series SR3F
Item #: 62997564
Brand: Supermill
Model #: SR3F750LRA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.75 in; 0.7500 |
| Mill Diameter (Inch) | 0.75 in; 3/4 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0300 |
| Number of Flutes | 3 |
| Finish/Coating | AlCrN |
| Length of Cut (Decimal Inch) | 2.2500 |
| Length of Cut (Inch) | 2-1/4 |
| Shank Diameter (Inch) | 3/4; 3/4 in |
| Overall Length (Inch) | 5; 5 in |
| Overall Length (mm) | 5 in |
| Centercutting | Yes |
| Chipbreaker | Yes |
| Helix Angle | 50 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Cutting Direction | Right Hand |
| Shank Diameter Tolerance (Decimal Inch) | 3/4 in |
| Series/List | SR3F |
