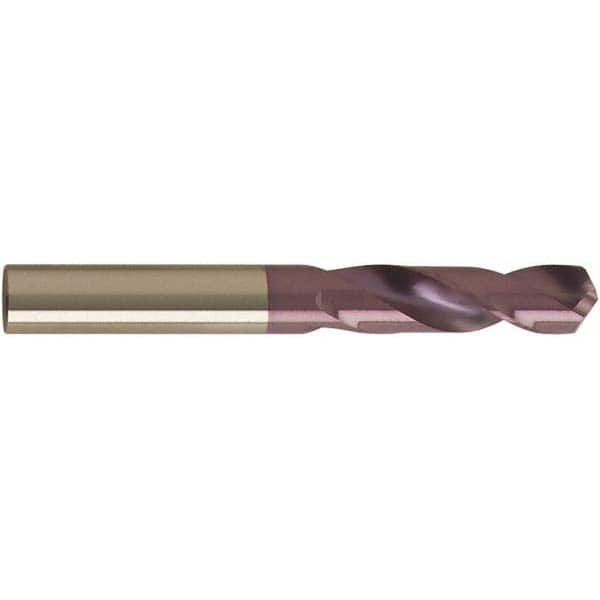

Screw Machine Length Drill Bit: 0.4844″ Dia, 118 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2463
Item #: 62992185
Brand: Guhring
Model #: 9024630123000
Product Specifications
| Drill Bit Size (Inch) | 31/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4843 |
| Drill Bit Size (Decimal Inch) | 0.4844 |
| Overall Length (mm) | 102.00 |
| Overall Length (Decimal Inch) | 4.0160 |
| Shank Diameter (mm) | 12.30 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.2810 |
| Maximum Drilling Depth (mm) | 32.55 |
| Shank Length (Decimal Inch) | 2.0079 |
| Shank Length (mm) | 51.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (Decimal Inch) | 2.0080 |
| Flute Length (mm) | 51.00 |
| Drill Bit Size Range (Decimal Inch) | 0.4500 to 0.5000 |
| Specification Designation | DIN |
| Material Grade | K40 |
