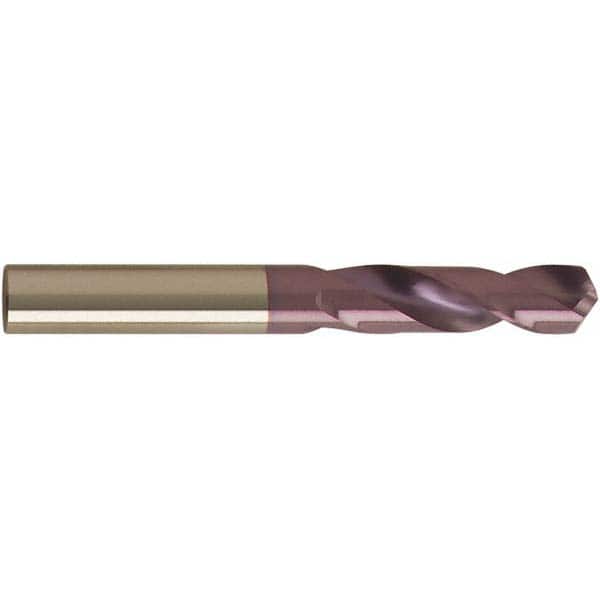

Screw Machine Length Drill Bit: 0.1181″ Dia, 118 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2463
Item #: 62991674
Brand: Guhring
Model #: 9024630030000
Product Specifications
| Drill Bit Size (mm) | 3.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Overall Length (mm) | 46.00 |
| Overall Length (Decimal Inch) | 1.8110 |
| Shank Diameter (mm) | 3.00 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.4530 |
| Maximum Drilling Depth (mm) | 11.50 |
| Shank Length (Decimal Inch) | 1.1811 |
| Shank Length (mm) | 30.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (Decimal Inch) | 0.6300 |
| Flute Length (Inch) | 5/8 |
| Flute Length (mm) | 16.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Drill Bit Size Range (mm) | 0.00 to 3.50 |
| Specification Designation | DIN |
| Material Grade | K40 |
 | |
| MSC Part # | 62991674 |
| Mfr Part # | 9024630030000 |
| Big Book Page # | 110 |
| Country of OriginCountry of Origin is subject to change | Germany |
