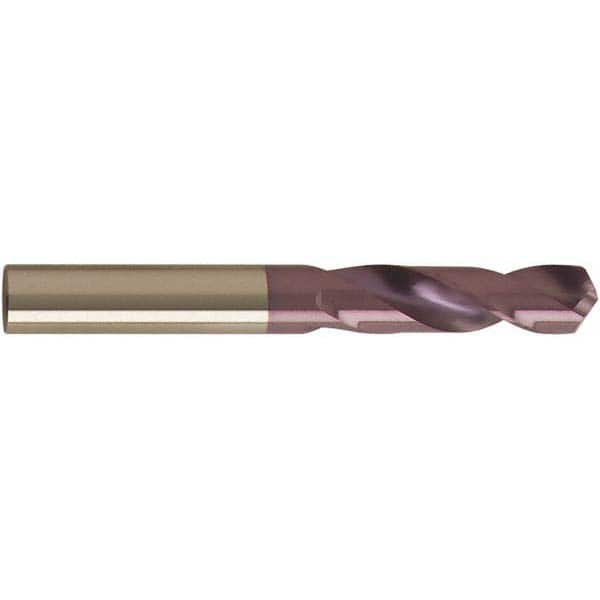

Screw Machine Length Drill Bit: 0.397″ Dia, 118 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 2463
Item #: 62990692
Brand: Guhring
Model #: 9024630100800
Product Specifications
| Drill Bit Size (Letter) | X |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Faceted |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3969 |
| Drill Bit Size (Decimal Inch) | 0.3970 |
| Overall Length (mm) | 89.00 |
| Overall Length (Decimal Inch) | 3.5040 |
| Shank Diameter (mm) | 10.08 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 1.0980 |
| Maximum Drilling Depth (mm) | 27.88 |
| Shank Length (Decimal Inch) | 1.8110 |
| Shank Length (mm) | 46.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (Decimal Inch) | 1.6930 |
| Flute Length (mm) | 43.00 |
| Drill Bit Size Range (Decimal Inch) | 0.3500 to 0.4000 |
| Specification Designation | DIN |
| Material Grade | K40 |
