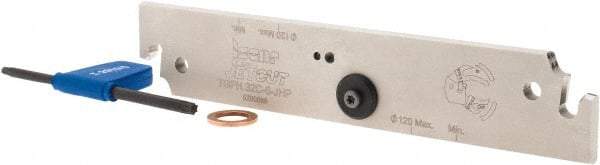

Iscar - 1.26" Blade Height, 0.205" Blade Width, 6.2992" OAL, Neutral Cut, Double End Indexable Cut-Off Blade - TGFH Blade, JetHPLine, Tang-Grip Series
Item #: 62801634
Brand: Iscar
Model #: 2302506
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Double |
| Cutting Direction | Neutral |
| Blade Height (mm) | 32.00 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Width (mm) | 5.21 |
| Blade Width (Decimal Inch) | 0.2050 |
| Blade Overall Length (mm) | 160.00 |
| Blade Overall Length (Decimal Inch) | 6.2992 |
| Blade Style | TGFH |
| Insert Style | TAG |
| Insert Width (mm) | 5.69 |
| Insert Width (Decimal Inch) | 0.2240 |
| Series | JetHPLine; Tang-Grip |
| Insert Seat Size | 5.2 |
| Tool Block/Toolholder Style | TGTBU JHP |
| Insert Holding Method | Self Grip |
| Maximum Workpiece Diameter (Decimal Inch) | 4.7200 |
| Cutting Height (mm) | 24.79 |
| Cutting Height (Decimal Inch) | 0.9760 |
| Minimum Insert Width (mm) | 5.69 |
| Minimum Insert Width (Decimal Inch) | 0.2240 |
| Maximum Insert Width (mm) | 6.50 |
| Maximum Insert Width (Decimal Inch) | 0.2560 |
| Complete Insert Compatibility | TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-6D; TAG N-UT; TAG N2.4C; TAG N2C; TAG N2J; TAG N2JS; TAG N2JT; TAG N2UT; TAG R2.4C-8D; TAG R2C-6D; TAG R2J-6D; TAG R2JS-6D |
| Complete Tool Block/Toolholder Style Compatibility | TGTBU 16-5G-JHP; TGTBU 19-5G-JHP; TGTBU 19-6G-JHP; TGTBU 25.4-5G-JHP; TGTBU 25.4-6G-JHP; TGTBU 31.8-6G-JHP |
