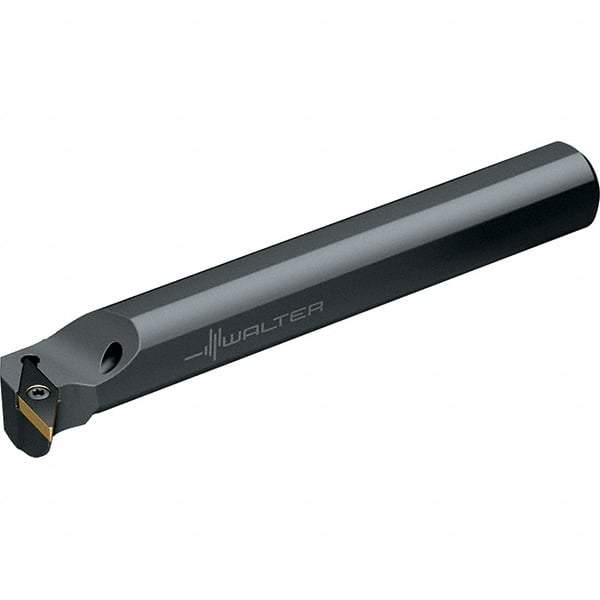

Walter - 54mm Min Bore Diam, 304.8mm OAL, 1-1/2" Shank Diam, A-SVUB Indexable Boring Bar - VB/C.. 1604.., VB/C.. 33.. Insert, Screw Holding Method
Item #: 62657101
Brand: Walter
Model #: 5204742
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SVUB |
| Series | Walter Turn |
| Minimum Bore Diameter (mm) | 54.00 |
| Minimum Bore Diameter (Decimal Inch) | 2.1260 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 304.80 |
| Overall Length (Decimal Inch) | 12.0000 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Compatibility | VB/C.. 1604..; VB/C.. 33.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (mm) | 28.58 |
| Center to Cutting Edge (Decimal Inch) | 1.1250 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Complete Insert Compatibility | VBMT 160404-PM4; VBMT 160404-PS5; VBMT 160406-PS5; VBMT 160408-PM4; VBMT 160408-PS5; VBMT 160412-PM4; VBMT 160412-PS5; VBMT 331.5-PS5; VBMT 331-PM4; VBMT 331-PS5; VBMT 332-PM4; VBMT 332-PS5; VBMT 333-PM4; VBMT 333-PS5; VCGT 160402-PF2; VCGT 160404-1L; VCG |
| Toolholder Material | Steel |
