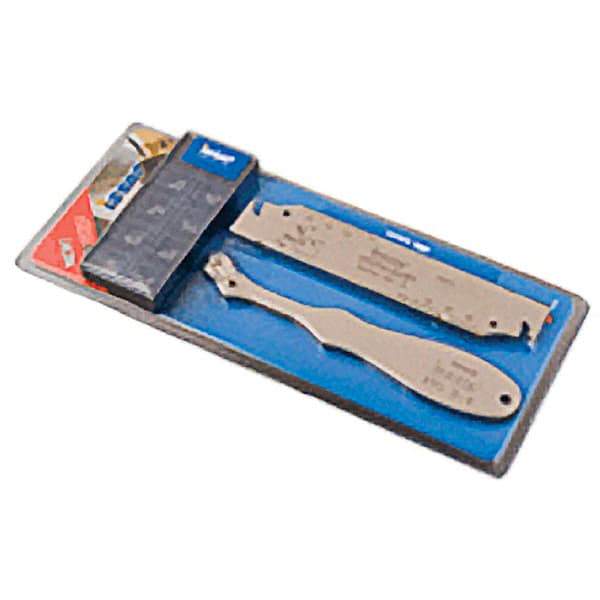

Iscar - TAG N-C/W/M Insert Style, TGFH Blade Style, IC808 Grade, 0.177 Inch Largest Insert Width, 0.146 Inch Smallest Insert Width, Indexable Cutoff Kit - Includes 10 Inserts
Item #: 62657093
Brand: Iscar
Model #: 2302166
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Insert Width - Largest Insert (Decimal Inch) | 0.1770 |
| Insert Width - Smallest Insert (Decimal Inch) | 0.1460 |
| Insert Style | TAG N-C/W/M |
| Manufacturer's Grade | IC808 |
| Blade Style | TGFH |
| Tool Block/Toolholder Style | TGFH |
| Number of Blades Included in Order | 1 |
| Number of Inserts Included in Order | 10 |
| Number of Toolholders Included in Order | 0 |
| Number of Pieces Included in Order | 11 |
| Blade Height (Decimal Inch) | 1.2600 |
| Blade Overall Length (Decimal Inch) | 5.9060 |
| Insert Seat Size | 3.4 |
| Insert Width (Decimal Inch) | 0.1460; 0.1770 |
| Cutting Height (Decimal Inch) | 0.9760 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Complete Blade Compatibility | TGFH 32-4 |
