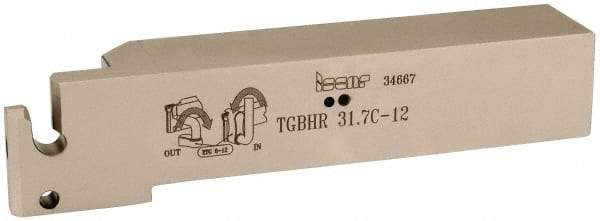

Iscar - External Thread, 1.18" Max Depth of Cut, 6.7" OAL, Right Hand Indexable Grooving Cutoff Toolholder - 1-1/4" Shank Height x 1-1/4" Shank Width, TAG N 12..C/W/M/TAGB/TAGBA 12.. Insert Style, TGBH Toolholder Style, Series Sumo-Grip
Item #: 62605381
Brand: Iscar
Model #: 2801606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 1.1800 |
| Maximum Groove Width (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 6.7000 |
| Series | Sumo-Grip |
| Toolholder Style | TGBH |
| Insert Compatibility | TAG N 12..C/W/M; TAGB/TAGBA 12.. |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0500 |
| Manufacturers Catalog Number | TGBHR 31.7C-12 |
| Complete Insert Compatibility | TAG N-C/W/M; TAGB/TAGBA |
