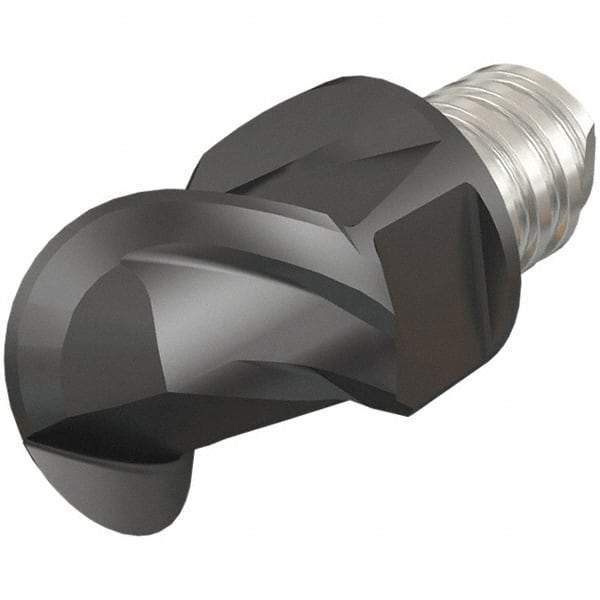

Iscar - MM EBA Grade IC08 Carbide Ball Nose Milling Tip Insert - Uncoated, 2 Flutes, 5/16" Cutting Diam, 0.2" Depth of Cut, 0.39" Extension, 5/32" Cnr Rad, 45° Helix
Item #: 62565221
Brand: Iscar
Model #: 5622243
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EBA |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.3120 |
| Manufacturer's Grade | IC08 |
| Depth of Cut (Decimal Inch) | 0.2000 |
| Number of Flutes | 2 |
| Coating | Uncoated |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.1560 |
| Extension From Holder (Decimal Inch) | 0.3900 |
| Thread Size | T05 |
| Helix Angle | 45 |
