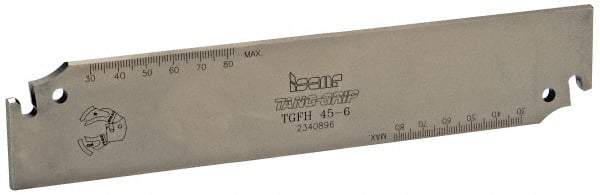

Iscar - 1.7717" Blade Height, 0.205" Blade Width, 8.858" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFH Blade, Tang-Grip Series
Item #: 62445473
Brand: Iscar
Model #: 2302169
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 45.00 |
| Blade Height (Decimal Inch) | 1.7717 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2050 |
| Blade Overall Length (mm) | 225.00 |
| Blade Overall Length (Decimal Inch) | 8.8580 |
| Blade Style | TGFH |
| Insert Style | TAG 6.. |
| Insert Width (mm) | 5.70 |
| Insert Width (Decimal Inch) | 0.2244 |
| Series | Tang-Grip |
| Insert Seat Size | 5.2 |
| Tool Block/Toolholder Style | SGTBU/SGTBN |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 6.3000 |
| Cutting Height (mm) | 38.10 |
| Cutting Height (Decimal Inch) | 1.5000 |
| Minimum Insert Width (mm) | 5.70 |
| Minimum Insert Width (Decimal Inch) | 0.2244 |
| Maximum Insert Width (mm) | 6.50 |
| Maximum Insert Width (Decimal Inch) | 0.2560 |
| Complete Insert Compatibility | TAG L6.3C-4D; TAG L6.3J-4D; TAG N6.3C; TAG N6.3J; TAG N6.3JT; TAG N6UT; TAG R6.3C-4D; TAG R6.3J-4D; TAGB 608Y; TAGB 630Y |
| Complete Tool Block/Toolholder Style Compatibility | SGTBU 25-8M; SGTBU 32-8M |
| Manufacturers Catalog Number | TGFH 45-6 |
