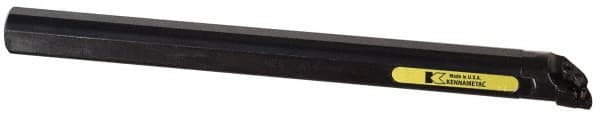

Kennametal - 50mm Min Bore Diam, 300mm OAL, 40mm Shank Diam, A-MWLN Indexable Boring Bar - 55mm Max Bore Depth, WN.. Insert, Screw or Clamp Holding Method
Item #: 62213335
Brand: Kennametal
Model #: 1098775
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MWLN |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 50.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.9685 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5750 |
| Insert Compatibility | WN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 27.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | WN.. 080408 |
| Toolholder Material | Steel |
