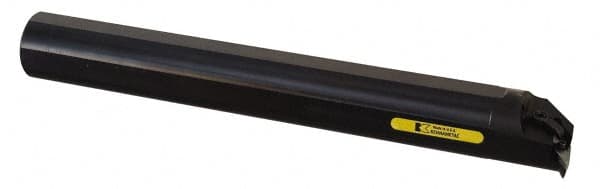

Kennametal - 37mm Min Bore Diam, 200mm OAL, 63/64" Shank Diam, A-MVUN Indexable Boring Bar - VN.. Insert, Screw or Clamp Holding Method
Item #: 62213228
Brand: Kennametal
Model #: 1098129
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MVUN |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 37.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.4567 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Compatibility | VN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | VN.. 160408 |
| Toolholder Material | Steel |
