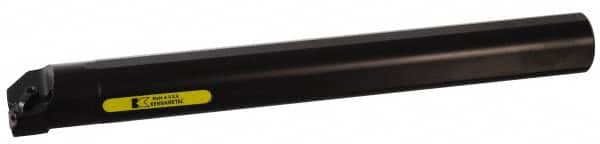

Kennametal - 40mm Min Bore Diam, 250mm OAL, 32mm Shank Diam, A-MTFN Indexable Boring Bar - TN.. Insert, Screw or Clamp Holding Method
Item #: 62213160
Brand: Kennametal
Model #: 1098123
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-MTFN |
| Series | Kenloc |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Insert Compatibility | TN.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Rake | Negative |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 5 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | TN.. 160408 |
| Toolholder Material | Steel |
