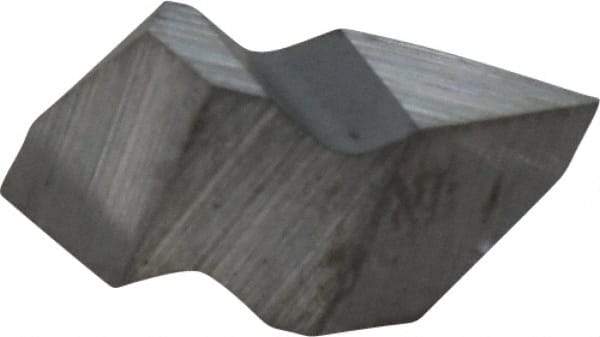

Kennametal - NTB2 Grade K68, Internal/External American Buttress Threading Insert - 16 to 20 TPI Int Pitch, Right Hand Insert, Uncoated, Carbide
Item #: 62199971
Brand: Kennametal
Model #: 1182375
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NTB |
| Insert Size | 2 |
| Thread Type | Internal/External |
| Insert Hand | Right Hand |
| Thread Standard | American Buttress |
| Material Grade | C3 |
| Manufacturer's Grade | K68 |
| Internal Pitch/TPI | 16-20 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Thickness (mm) | 3.81 |
| Thickness (Decimal Inch) | 0.1500 |
| Series | Top Notch |
| Included Angle of Threading Tip | 45 |
| Rake | Neutral |
| Tip to Top of Insert (mm) | 3.20 |
| Tip to Top of Insert (Decimal Inch) | 0.1260 |
