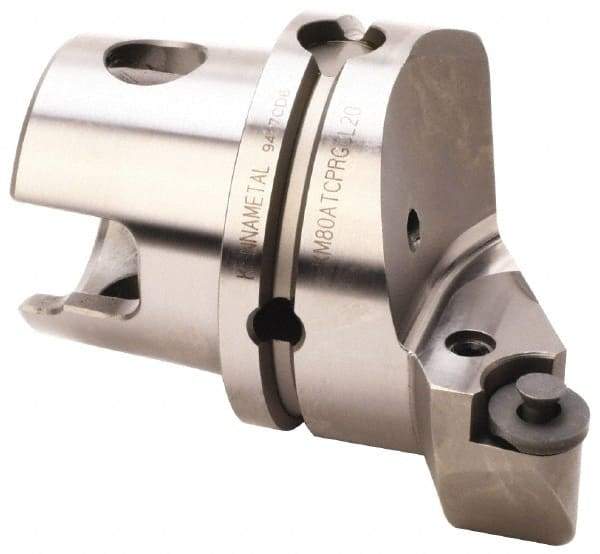

Kennametal - Right Hand Cut, Size KM80, RC.. 2006M0 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 53mm Ctr to Cutting Edge, 70mm Head Length, Through Coolant, Series Kenlever
Item #: 62199054
Brand: Kennametal
Model #: 2203621
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM80 |
| Series Name | Kenlever |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 70.00 |
| Head Length/Projection (Decimal Inch) | 2.7559 |
| Insert Style | RC.. 2006M0 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 53.00 |
| Center to Cutting Edge (Decimal Inch) | 2.0866 |
| Insert Holding Method | Screw or Clamp |
| Through Coolant | Through Coolant |
| Minimum Hole Diameter (mm) | 106.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.1732 |
| Axial Rake Angle | 0.000 |
| Radial Rake Angle | 0 |
