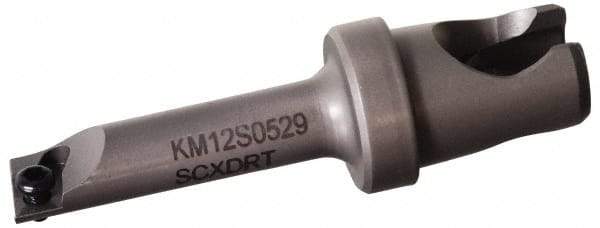

Kennametal - Right Hand Cut, 11.80mm Min Bore Diam, Size KM16 Modular Boring Cutting Unit Head - 1.6142" Max Bore Depth, Through Coolant, Compatible with CP..
Item #: 62198734
Brand: Kennametal
Model #: 2250041
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | KM16 |
| Series Name | KM Micro |
| Minimum Bore Diameter (mm) | 11.80 |
| Minimum Bore Diameter (Decimal Inch) | 0.4370 |
| Cutting Direction | Right Hand |
| Maximum Bore Depth (mm) | 41.00 |
| Maximum Bore Depth (Decimal Inch) | 1.6142 |
| Insert Style | CP.. |
| Head Length/Projection (mm) | 46.00 |
| Head Length/Projection (Decimal Inch) | 1.8110 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Center to Cutting Edge (mm) | 5.80 |
| Center to Cutting Edge (Decimal Inch) | 0.2283 |
| Neck Diameter (mm) | 10.20 |
| Complete Insert Compatibility | CP.. 0602..; CPT... |
