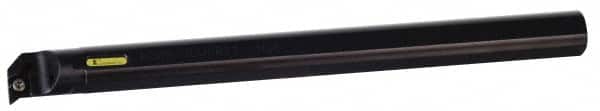

Kennametal - 13mm Min Bore Diam, 125mm OAL, 10mm Shank Diam, A-SDUC Indexable Boring Bar - DC.. Insert, Screw Holding Method
Item #: 62181714
Brand: Kennametal
Model #: 1886505
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDUC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 13.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.5118 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3940 |
| Insert Compatibility | DC.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 7.00 |
| Insert Thickness (Inch) | 3/32 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 3.20 |
| Complete Insert Compatibility | DC.. 070204 |
| Toolholder Material | Steel |
