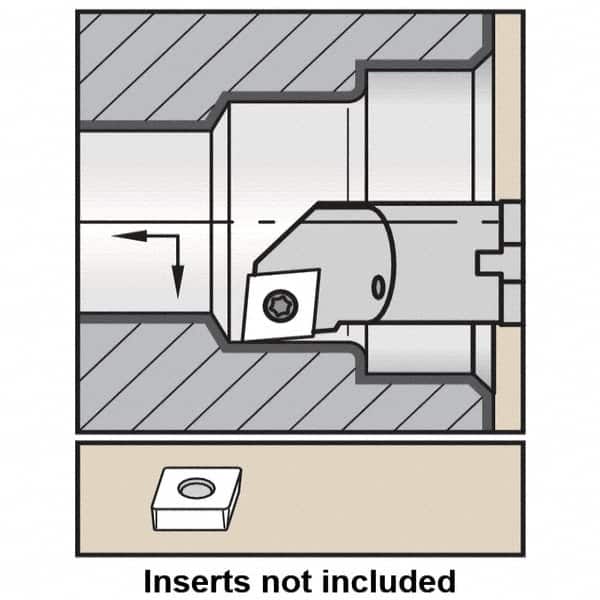

Kennametal - 40mm Min Bore Diam, 300mm OAL, 32mm Shank Diam, A-SCLC Indexable Boring Bar - CC.. Insert, Screw Holding Method
Item #: 62181532
Brand: Kennametal
Model #: 1098282
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SCLC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 40.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.5748 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2600 |
| Insert Compatibility | CC.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 5 |
| Center to Cutting Edge (mm) | 22.00 |
| Insert Thickness (Inch) | 3/16 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | CC.. 120408 |
| Toolholder Material | Steel |
