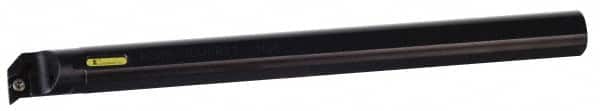

Kennametal - 32mm Min Bore Diam, 300mm OAL, 63/64" Shank Diam, A-SDQC Indexable Boring Bar - DC.. Insert, Screw Holding Method
Item #: 62181359
Brand: Kennametal
Model #: 1098260
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A-SDQC |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Overall Length (Decimal Inch) | 11.8110 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9840 |
| Insert Compatibility | DC.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 17.5 |
| Center to Cutting Edge (mm) | 17.00 |
| Insert Thickness (Inch) | 5/32 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Coolant Hole Thread Size (Inch) | 1/4-18 NPT |
| Complete Insert Compatibility | DC.. 11T308 |
| Toolholder Material | Steel |
