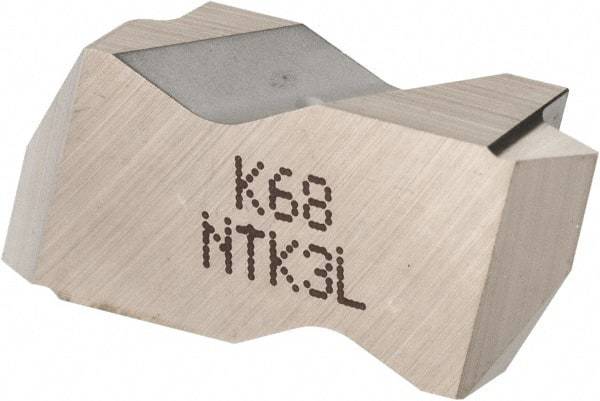

Kennametal - NTK3 Grade K68, Internal/External Partial Profile 60° Threading Insert - 0.6 to 2.5mm & 10 to 44 TPI Ext Pitch, 10 to 2.5mm & 9 to 24 TPI Int Pitch, Left Hand Insert, Uncoated, Carbide
Item #: 62154943
Brand: Kennametal
Model #: 1114627
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | NTK |
| Insert Size | 3 |
| Thread Type | Internal/External |
| Insert Hand | Left Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | C3 |
| Manufacturer's Grade | K68 |
| Internal Pitch/TPI | 1.00-2.50 mm; 9-24 TPI |
| External Pitch/TPI | 0.60-2.50 mm; 10-44 TPI |
| Coating | Uncoated |
| Material | Carbide |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0031 |
| Thickness (mm) | 4.95 |
| Thickness (Decimal Inch) | 0.1949 |
| Series | Top Notch |
| Included Angle of Threading Tip | 60 |
| Rake | Positive |
| Tip to Top of Insert (mm) | 3.58 |
| Tip to Top of Insert (Decimal Inch) | 0.1409 |
