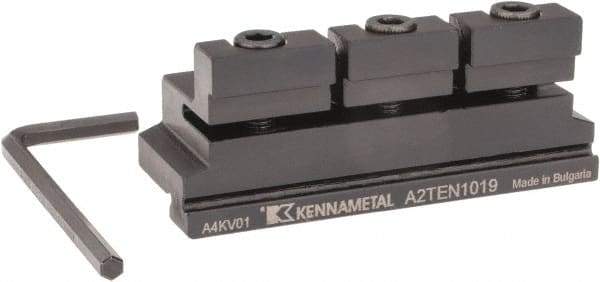

Kennametal - Tool Block Style A2TEN, 19mm Blade Height, 75mm OAL, 30mm OAH, Indexable Cutoff Blade Tool Block - 5/8" Shank Height, 5/8" Shank Width, Reversible, Series A2 Cut-Off
Item #: 62032768
Brand: Kennametal
Model #: 1878049
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | A2TEN |
| Blade Height (mm) | 19.00 |
| Blade Height (Decimal Inch) | 0.7480 |
| Overall Length (mm) | 75.00 |
| Overall Length (Decimal Inch) | 2.9500 |
| Overall Height (mm) | 30.00 |
| Overall Height (Decimal Inch) | 1.1800 |
| Shank Height (mm) | 15.88 |
| Shank Height (Inch) | 5/8 |
| Shank Height (Decimal Inch) | 0.6250 |
| Shank Width (mm) | 15.88 |
| Shank Width (Inch) | 5/8 |
| Shank Width (Decimal Inch) | 0.6250 |
| Through Coolant | NonThrough Coolant |
| Reversible | Yes |
| Series | A2 Cut-Off |
| Overall Width (mm) | 26.00 |
| Overall Width (Decimal Inch) | 1.0200 |
| Shoulder Height (Decimal Inch) | 0.1600 |
| Insert Cutting Direction | Neutral |
