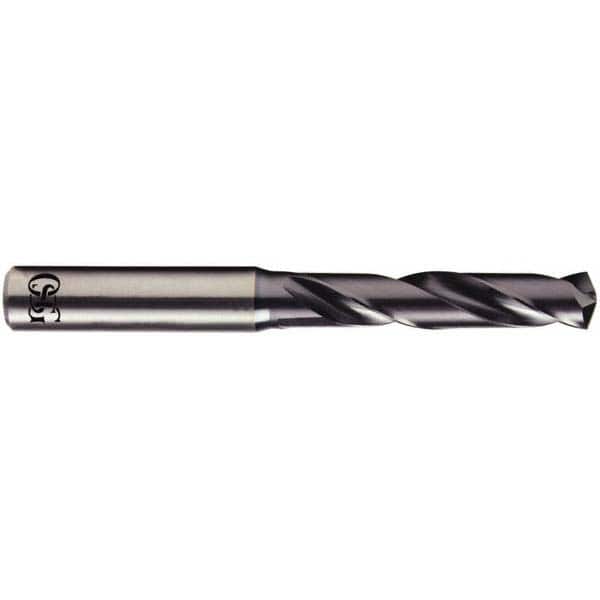

Screw Machine Length Drill Bit: 0.7087″ Dia, 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series HP243
Item #: 61997235
Brand: OSG
Model #: HP243-7087
Product Specifications
| Drill Bit Size (mm) | 18.00 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Drill Bit Size (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Shank Diameter (mm) | 18.00 |
| Series | HP243 |
| Web Thinning | R-Thinned |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Point Type | R-Thinned |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | High Performance |
| Drill Bit Diameter Tolerance | +0.007 to +0.025 mm |
| Flute Length (mm) | 73.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
