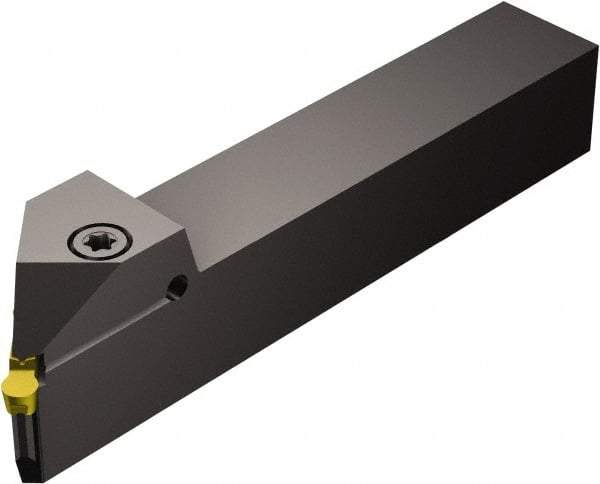

Sandvik Coromant - N123J2-0500-0004-TF, R/LX123.. B-045 (INCH) Right Hand Indexable Profiling Toolholder - 1" Shank Height x 1" Shank Width, 6.6929" Long, Steel
Item #: 61975355
Brand: Sandvik Coromant
Model #: 5741355
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Rake | Neutral |
| Insert Compatibility | N123J2-0500-0004-TF |
| Toolholder Style | R/LX123.. B-045 (INCH) |
| Series | CoroCut 1-2 |
| Toolholder Material | Steel |
| Through Coolant | No |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2126 |
| Head Length (Decimal Inch) | 1.9016 |
| Complete Insert Compatibility | N123J2-0500-0004-TF |
