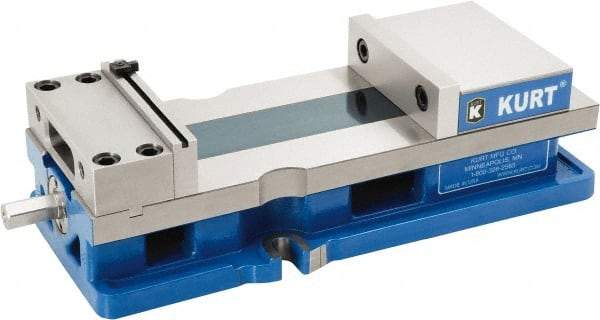

Kurt - 6" Jaw Width, 9" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Reverse Manual Operation, 1 Station, 18.385" Long x 4.86" High x 1-47/64" Deep, 1.735" Jaw Height, 12,600 Lb Max Clamp Force, Ductile Iron
Item #: 61945077
Brand: Kurt
Model #: HD691
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 9 |
| Throat Depth (Inch) | 1-47/64 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Reverse Manual |
| Jaw Height (Decimal Inch) | 1.7350 |
| Precision | Yes |
| Overall Length (Inch) | 18.3850 |
| Overall Length (Decimal Inch) | 18.3850 |
| Base Width (Inch) | 6 |
| Base Width (Decimal Inch) | 6.0000 |
| Vise Material | Ductile Iron |
| Maximum Clamping Force (Ft/Lb) | 12600.00 |
| Overall Height (Decimal Inch) | 4.8600 |
