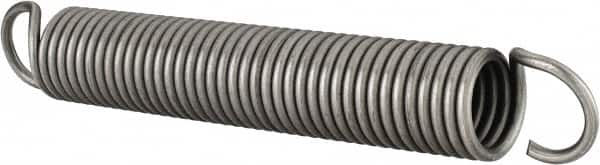

Associated Spring Raymond - 1" OD, 8-1/2" Max Ext Len, Spring Steel Extension & Compression Spring - 12.2 Lb/In Rating, 196.34mm Free Length
Item #: 61829941
Brand: Associated Spring Raymond
Model #: 020030000
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Extension & Compression |
| Outside Diameter (Decimal Inch) | 1.0000 |
| Outside Diameter (Inch) | 1 |
| Inside Hook Length | 0.000 |
| Material | Spring Steel |
| Overall Length (Inch) | 8-1/2 |
| Maximum Extended Length (Inch) | 8-1/2 |
| Spring Rate Pounds per Inch (Pounds) | 12.2000 |
| Free Length (mm) | 196.34 |
| Free Length (Decimal Inch) | 7.7300 |
| Outside Diameter (mm) | 26.97 |
| Outside Diameter (Decimal Inch) | 1.0620 |
| Maximum Extended Length (mm) | 133.44 |
| Maximum Extended Length (Decimal Inch) | 221.7400 |
