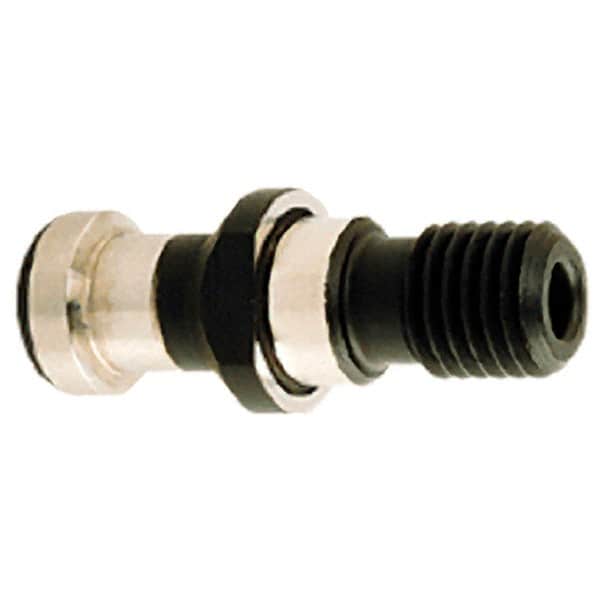

Iscar - DIN69871-30 Taper, M12x1.75 Thread, 15° Angle Radius, Standard Retention Knob - 1.7323" OAL, 0.5118" Knob Diam, 0.9449" from Knob to Flange
Item #: 61822995
Brand: Iscar
Model #: 4517010
Exact Tooling IR#: 04
Features and Benefits
Retention knobs, also known as pull studs, are threaded components that enable the mounting of a toolholder to the spindle of a CNC milling machine. Retention knobs are held in the machine by a clamp or spring.
| Product Specifications | |
|---|---|
| Type | Standard |
| Taper Size | DIN69871-30 |
| Thread Size | M12x1.75 |
| Angle Radius | 15.00 |
| Knob Diameter (Decimal Inch) | 0.5118 |
| Through Coolant | No |
| Neck Diameter (Decimal Inch) | 0.3543 |
| Overall Length (Decimal Inch) | 1.7323 |
| Knob to Flange Length (Decimal Inch) | 0.9449 |
