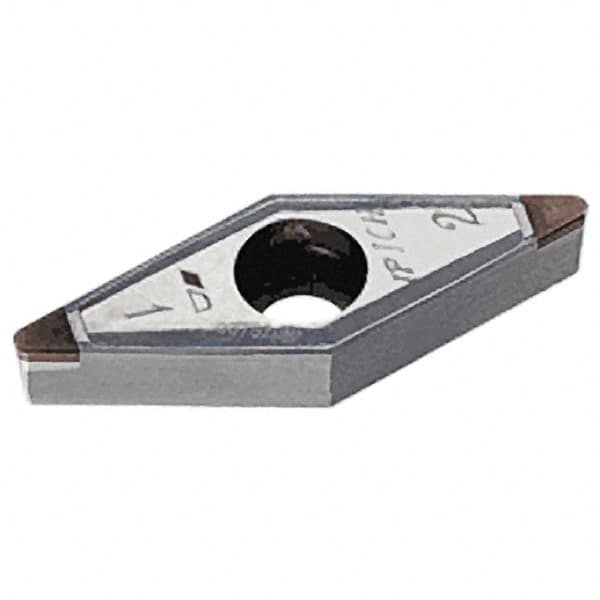

Iscar - VBMW221 M2 Grade IB10H CBN Turning Insert - Uncoated, 35° Diamond, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 61817235
Brand: Iscar
Model #: 6818009
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | VBMW |
| Insert Size | 221 |
| Material | CBN |
| Length (mm) | 11.10 |
| Length (Decimal Inch) | 0.4370 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | IB10H |
| Coating | Uncoated |
| Material Grade | Fine Grain |
| Chip Breaker | M2 |
| Insert Length (Decimal Inch) | 0.4370 |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | VBMW 221-M2 |
| Relief Angle | 5 |
| Included Angle | 35 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 0.51 |
| Maximum Depth of Cut (Decimal Inch) | 0.0200 |
| Insert Holding Method | Screw |
| FullRadius | No |
| Shape | Diamond |
