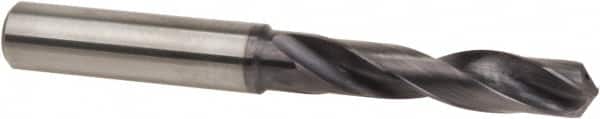

Screw Machine Length Drill Bit: 0.4219″ Dia, 140 °, Solid Carbide TiAlN Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank
Item #: 61706735
Brand: Accupro
Model #: 4500377
Product Specifications
| Drill Bit Size (Inch) | 27/64 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Special |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.4219 |
| Drill Bit Size (Decimal Inch) | 0.4219 |
| Overall Length (Decimal Inch) | 4.5670 |
| Web Thinning | R-Thinned |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 2.1650 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.4000 to 0.4500 |
| Specification Designation | ISO |
