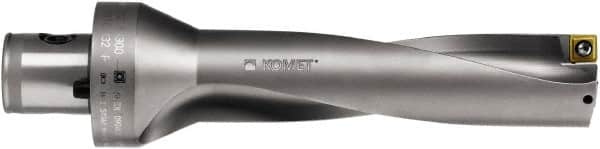

Komet - 3.937" Max Drill Depth, 2xD, 49.2mm Diam, Indexable Insert Drill - 4 Inserts, ABS 63 Modular Connection Shank
Item #: 61699112
Brand: Komet
Model #: U1084920
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U10 |
| Drill Diameter (mm) | 49.20 |
| Drill Diameter (Decimal Inch) | 1.9370 |
| Maximum Drill Depth (Decimal Inch) | 3.9370 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 63 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 4 |
| Maximum Drill Diameter (Decimal Inch) | 1.9570 |
| Overall Length/Projection (Decimal Inch) | 6.1020 |
| Insert Compatibility | SOEX 07T308 |
| Body Length (Decimal Inch) | 6.1020 |
| Series | KUB Quatron |
