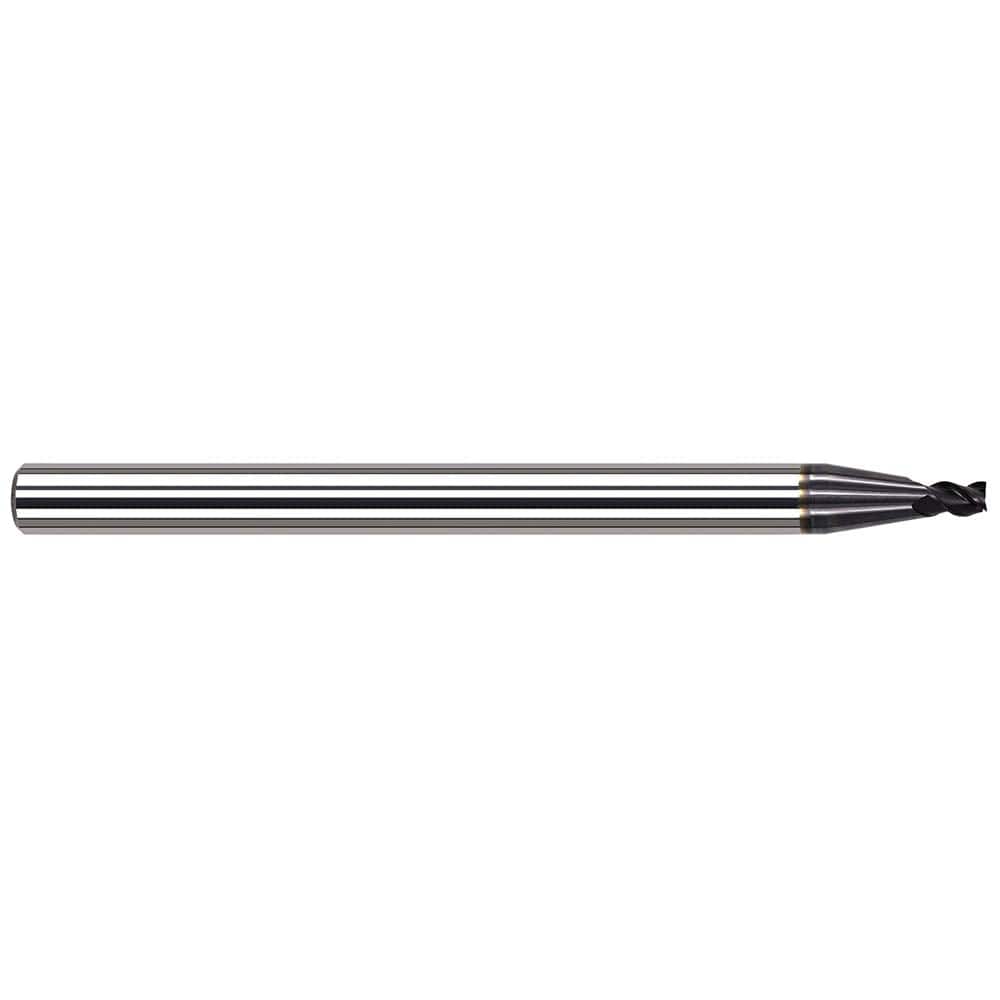

Corner Radius End Mill: 0.0551″ Dia, 0.0827″ LOC, 3 Flutes, Solid Carbide 34 ° Helix, AlTiN Coated, Corner Radius End
Item #: 61659645
Brand: Harvey Tool
Model #: 984131-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0551 |
| Mill Diameter (mm) | 1.40 |
| Corner Radius (mm) | 0.10 |
| Length of Cut (mm) | 2.10 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 34 |
| Variable Helix | Yes |
| Shank Diameter (mm) | 4.0000 |
| Overall Length (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | Variable Helix End Mills for High Temp Alloys - Corner Radius |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0827 |
