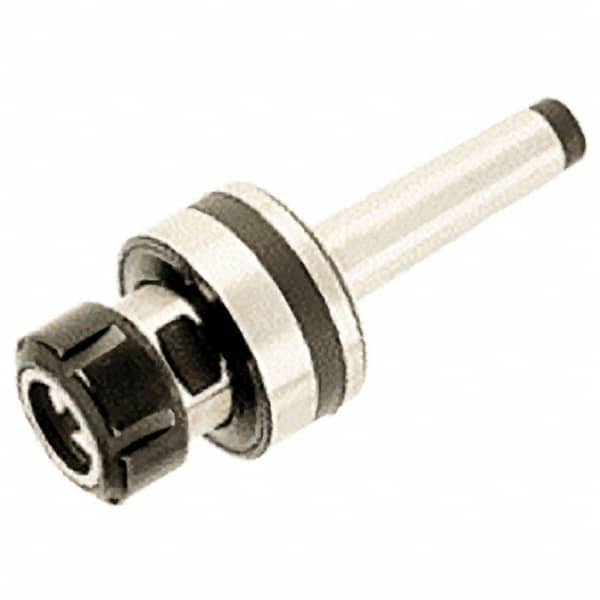

Iscar - MT3 Taper, Series ER32, Reamer Collet Chuck - 3.028 Inch Projection, 0.08 to 0.789 Inch Collet Capacity, 3.386 Inch Shank Length, Through Coolant
Item #: 61635512
Brand: Iscar
Model #: 4503871
Exact Tooling IR#: 04
Features and Benefits
Taper shanks maintain balance and rigidity during high speeds and heavy-duty applications. They have smaller diameters than straight shanks.
| Product Specifications | |
|---|---|
| Collet Series | ER32 |
| Shank Type | Taper Shank |
| Taper Size | MT3 |
| Projection (Decimal Inch) | 3.0280 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0800 |
| Maximum Collet Capacity (Decimal Inch) | 0.7890 |
| Overall Length (Decimal Inch) | 6.4140 |
| Shank Length (Decimal Inch) | 3.3860 |
| Float From Center (Decimal Inch) | 0.0630 |
| PSC Code | 5136 |
