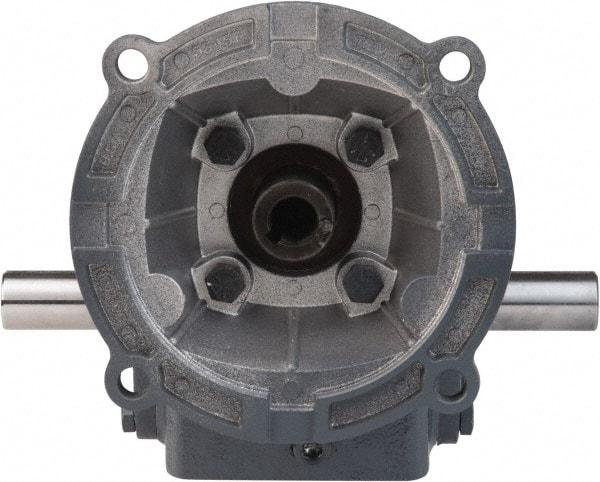

Boston Gear - 3 Centerline Distance, 10:1, 175 RPM Output, 5.28 Input Horsepower, 1,787 Lbs. Max Torque, Speed Reducer - Part No. F730-10-B7-H, 1-1/4" Shaft Diam, Double Shaft Left & Right, 7/8" Bore, 8.88" High, 140TC NEMA
Item #: 61571378
Brand: Boston Gear
Model #: 60731
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.000 |
| Ratio | 10:1 |
| NEMA Size | 140TC |
| PartNo | F730-10-B7-H |
| Shaft Style | Double Shaft Left/Right |
| Bore Size (Decimal Inch) | 0.875 |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 8.88 |
| Maximum Torque Inch/Lbs (Pounds) | 1787.00 |
| Maximum Input Horsepower | 5.28 |
| Output RPM at 1750 Input | 175.0 |
