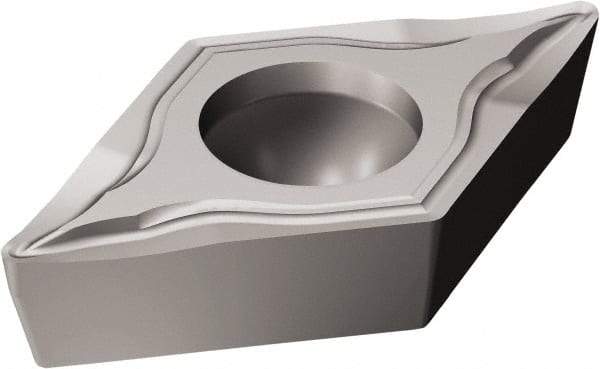

Sandvik Coromant - DCGT32.5 UM Grade 5015 Cermet Turning Insert - Uncoated, 55° Parallelogram, 3/8" Inscr Circle, 5/32" Thick, 0.2mm Corner Radius
Item #: 61460259
Brand: Sandvik Coromant
Model #: 5730400
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DCGT |
| Insert Size | 32.5 |
| Material | Cermet |
| Length (mm) | 11.43 |
| Length (Decimal Inch) | 0.4499 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | 5015 |
| Coating | Uncoated |
| Chip Breaker | UM |
| Insert Length (Decimal Inch) | 0.4499 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1563 |
| ISO Number | DCGT 11 T3 02-UM 5015 |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | DCGT 11 T3 02-UM 5015 |
| Primary Workpiece Material | P |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 11.43 |
| Maximum Depth of Cut (Decimal Inch) | 0.4499 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 11.43 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
