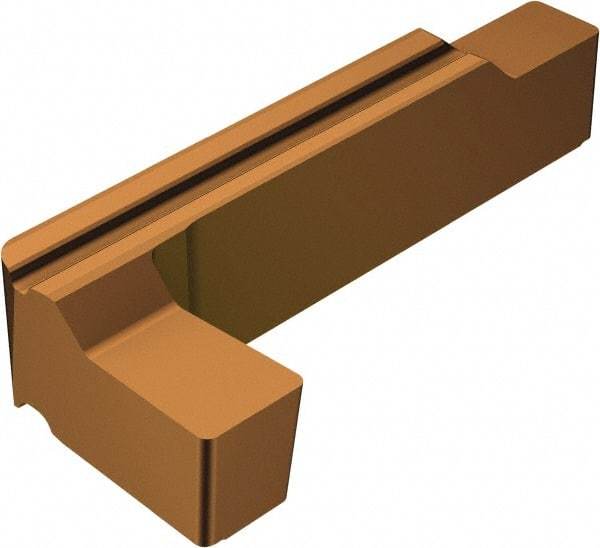

Sandvik Coromant - LXR/LG123.. GS Grade 1115, 4mm Cutting Width Carbide Grooving Insert - 9mm Max Depth of Cut, Left Hand, 0.4mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 61458683
Brand: Sandvik Coromant
Model #: 5732328
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R/LG123.. |
| Insert Size | LX |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 9.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3543 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 6.05 |
| Cutting Height (Decimal Inch) | 0.2382 |
| Lead Angle | 90 |
| Relief Angle | 7 |
| Insert Seat Size | LX |
| Chipbreaker | GS |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Grooving; Slitting; Slotting |
| Minimum Corner Radius (Decimal Inch) | 0.0138 |
| Maximum Corner Radius (Decimal Inch) | 0.0177 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Overall Length (mm) | 30.90 |
| Overall Length (Decimal Inch) | 1.2165 |
| Series | CoroCut 1-2 |
| Rake Angle | 0 |
| Rake | Neutral |
| ISO Number | LG123L1-0400-0004-GS1115 |
| Manufacturers Catalog Number | LG123L1-0400-0004-GS1115 |
| Overall Width (mm) | 4.00 |
| Overall Width (Decimal Inch) | 0.1575 |
| Insert Thickness (Decimal Inch) | 0.1713 |
