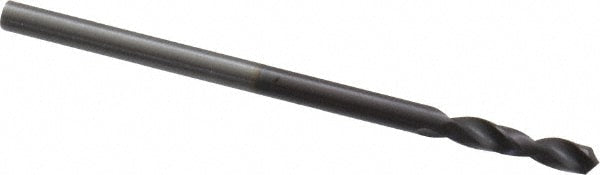

Screw Machine Length Drill Bit: 0.0709" Dia, 118 deg Point, Solid Carbide
Item #: 75744508
Brand: Guhring
Model #: 9024630018000
Product Specifications
| Drill Bit Size (mm) | 1.80 |
| Drill Bit Size (Decimal Inch) | 0.0709 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Multi-layer |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 118 |
| Coolant Through | No |
| Primary Workpiece Material | Aluminum & Non-Ferrous |
| Point Type | 4 Facet |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.0709 |
| Overall Length (mm) | 36.00 |
| Overall Length (Decimal Inch) | 1.4173 |
| Series | 2463 |
| Web Thinning | Web-Thinned |
| Web Configuration | Parallel |
| Proprietary Coating/Finish | FIREX |
| Drill Length Type | Stub |
| Maximum Drilling Depth (Decimal Inch) | 0.3270 |
| Maximum Drilling Depth (mm) | 8.30 |
| Shank Length (Decimal Inch) | 0.9843 |
| Shank Length (mm) | 25.00 |
| Flute By Diameter Ratio | 3xD |
| Tool Performance | General Purpose |
| Drill Bit Diameter Tolerance | +0.000 to -0.010 mm |
| Standards | DIN 6539 |
| Flute Length (mm) | 11.00 |
| Drill Bit Size Range (Decimal Inch) | 0.0000 to 0.1000 |
| Specification Number | DIN 6539 |
| Specification Designation | DIN |
| Material Grade | Submicron |
| UNSPSC Code | 23241635 |
| Country of Origin | Germany |
