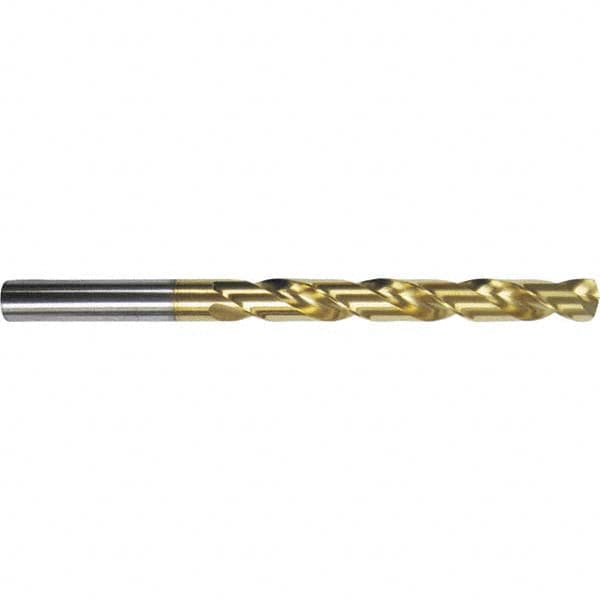

Jobber Drill: #18, 130 deg Point, Cobalt
Item #: 75740282
Brand: Guhring
Model #: 9006570043000
Product Specifications
| Drill Bit Size (Wire) | #18 |
| Drill Bit Size (Decimal Inch) | 0.1695 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 130 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy; Stainless Steel |
| Specification Number | DIN 338 |
| Coolant Through | No |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3125 |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1496 |
| Spiral Type | Regular |
| Flute Length (mm) | 47.00 |
| Flute Length (Decimal Inch) | 1.8504 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 4.3 |
| Maximum Drilling Depth (Decimal Inch) | 2.0000 |
| Maximum Drilling Depth (mm) | 47.00 |
| Shank Length (mm) | 33 |
| Shank Length (Decimal Inch) | 1.2992 |
| Drill Bit Diameter Tolerance | +0.000 to -0.018 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Material Grade | M35 |
| Specification Designation | DIN |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
