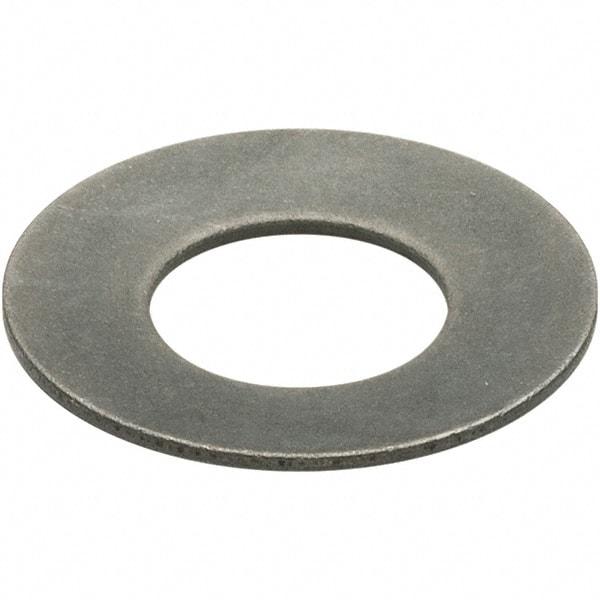

Associated Spring Raymond - 2.2441" ID, Grade 1075 High Carbon Steel, Oil Finish, Belleville Disc Spring - 4.4095" OD, 0.3346" High, 0.2362" Thick
Item #: 61416319
Brand: Associated Spring Raymond
Model #: BD112600
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 2.2441 |
| Inside Diameter (mm) | 57.00 |
| Material | High Carbon Steel |
| Material Grade | 1075 |
| Outside Diameter (Decimal Inch) | 4.4095 |
| Outside Diameter (mm) | 112.00 |
| Thickness (mm) | 6.00 |
| Thickness (Decimal Inch) | 0.2362 |
| Overall Height (mm) | 8.50 |
| Overall Height (Decimal Inch) | 0.3346 |
| Deflection (Decimal Inch) | 0.0736 |
| Deflection (mm) | 1.87 |
| Load at Deflection (Lb.) | 9820.33 |
| Load at Deflection (N) | 43683.00 |
| Finish/Coating | Oil |
| Fastener Standard | DIN 2093 |
