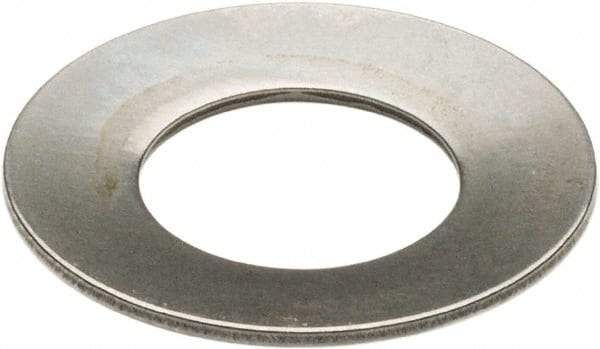

Associated Spring Raymond - 2" Bolt, Grade 1074 Steel, Oil Finish, Belleville Disc Spring - 1/4" High, 1/8" Thick
Item #: 61410981
Brand: Associated Spring Raymond
Model #: B4000125
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 2 |
| Bolt Size (mm) | 50.80 |
| System of Measurement | Inch |
| Material | Steel |
| Material Grade | 1074 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1250 |
| Overall Height (mm) | 6.35 |
| Overall Height (Decimal Inch) | 0.2500 |
| Deflection (Decimal Inch) | 0.0630 |
| Deflection (mm) | 1.60 |
| Minimum Inside Diameter (Decimal Inch) | 2.0000 |
| Minimum Inside Diameter (mm) | 50.80 |
| Maximum Outside Diameter (Decimal Inch) | 4.0000 |
| Maximum Outside Diameter (mm) | 101.60 |
| Load at Flat (Lb.) | 2910.00 |
| Load at Flat (N) | 12944.30 |
| Minimum Load at Deflection (Lb.) | 1709.00 |
| Minimum Load at Deflection (N) | 7602.01 |
| Maximum Load at Deflection (Lb.) | 2312.00 |
| Maximum Load at Deflection (N) | 10284.30 |
| Finish/Coating | Oil |
| Bolt Size (Decimal Inch) | 2 |
