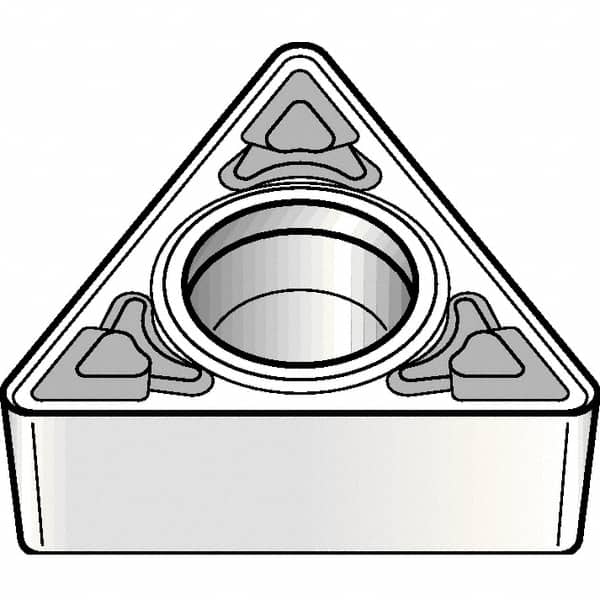

Kennametal - TPMT32.52 MF Grade KCM25B Carbide Turning Insert - TiOCN Finish, 60° Triangle, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 61272324
Brand: Kennametal
Model #: 5591164
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KCM25B |
| Coating | TiOCN |
| Chip Breaker | MF |
| Insert Length (Decimal Inch) | 0.6496 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | TPMT16T308MF |
| Relief Angle | 11 |
| Coating Process | CVD |
| Primary Workpiece Material | M |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Insert Holding Method | Screw |
| Shape | Triangle |
