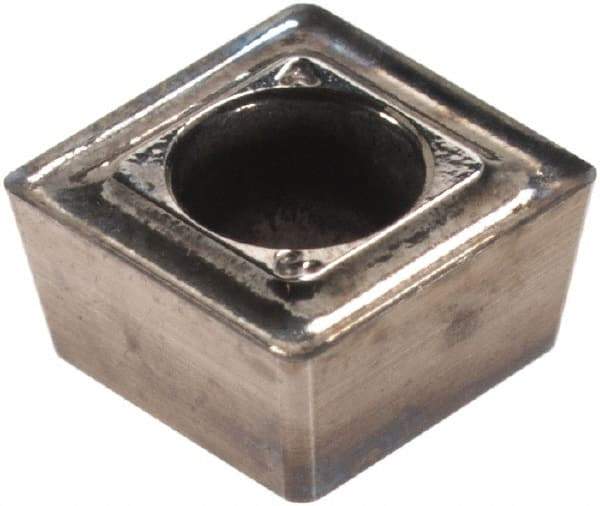

Iscar - SOGX060304 AL Grade IC08 Carbide Indexable Drill Insert - Uncoated, Square, 6.2mm Inscribed Circle
Item #: 61187928
Brand: Iscar
Model #: 5507938
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | SOGX |
| Insert Size | 060304 |
| Material | Carbide |
| Manufacturer's Grade | IC08 |
| Inscribed Circle (mm) | 6.20 |
| Inscribed Circle (Decimal Inch) | 0.2441 |
| Thickness (mm) | 3.20 |
| Thickness (Decimal Inch) | 0.1260 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Shape | Square |
| Included Angle | 90 |
| Coating | Uncoated |
| Chipbreaker | AL |
