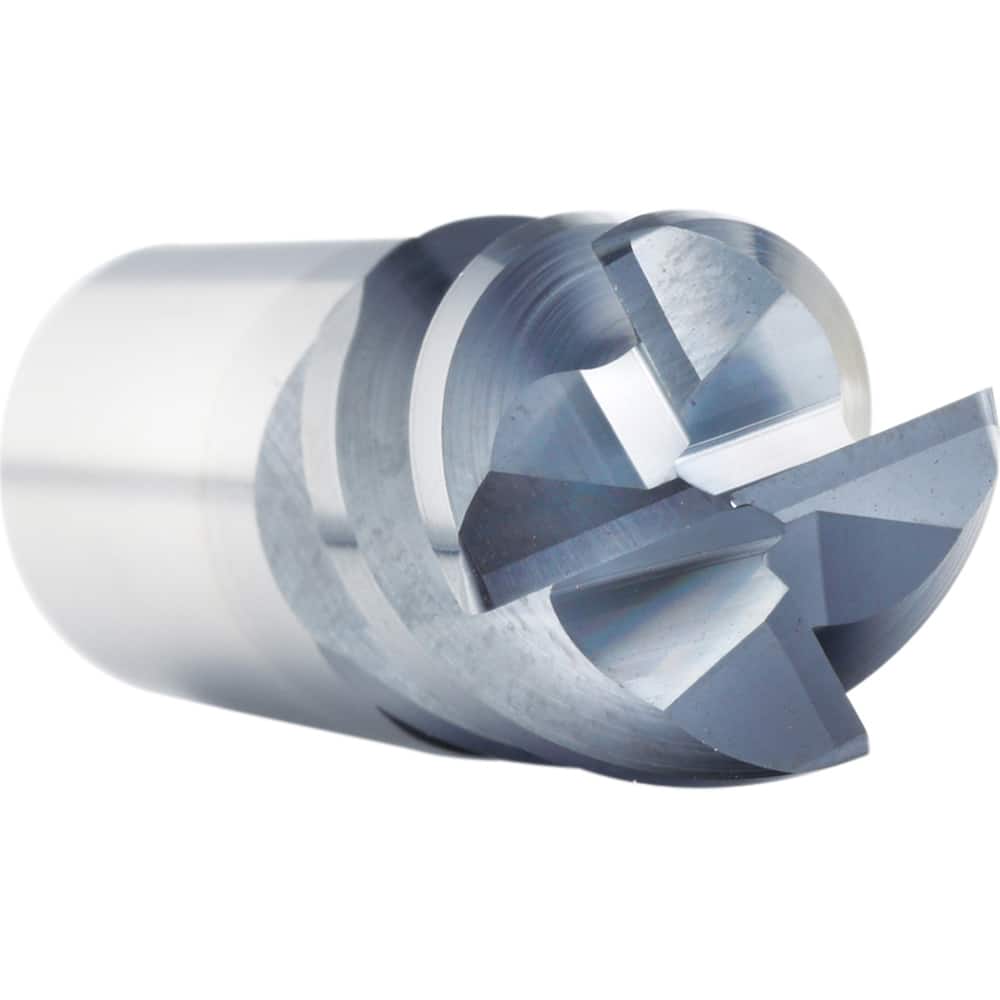

Corner Chamfer End Mill: 0.5″ Dia, 1.25″ LOC, 4 Flute, 0.02″ Chamfer Width, Solid Carbide 3″ OAL, 4″ Shank Dia, 45 ° Helix, AlTiN Coated, Centercutting
Item #: 61136255
Brand: Supermill
Model #: XP500MCA
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Chamfer Width (Decimal Inch) | 0.0200 |
| Mill Diameter (Inch) | 1/2 |
| Chamfer Angle | 45 |
| Length of Cut (Inch) | 1-1/4 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Corner Chamfer |
| Helix Angle | 45 |
| Centercutting | Yes |
| Variable Index | Yes |
| Variable Helix | No |
| Shank Diameter (Decimal Inch) | 4.0000 |
| Shank Diameter (Inch) | 4 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Mill Diameter Tolerance | +0.000 to -0.002 in |
| Shank Diameter Tolerance | h6 |
| Overall Length Tolerance | -0.000 to +0.050 in |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Cutting Direction | Right Hand |
| Material Grade | Micrograin |
| Series | XP-NB |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.2500 |
