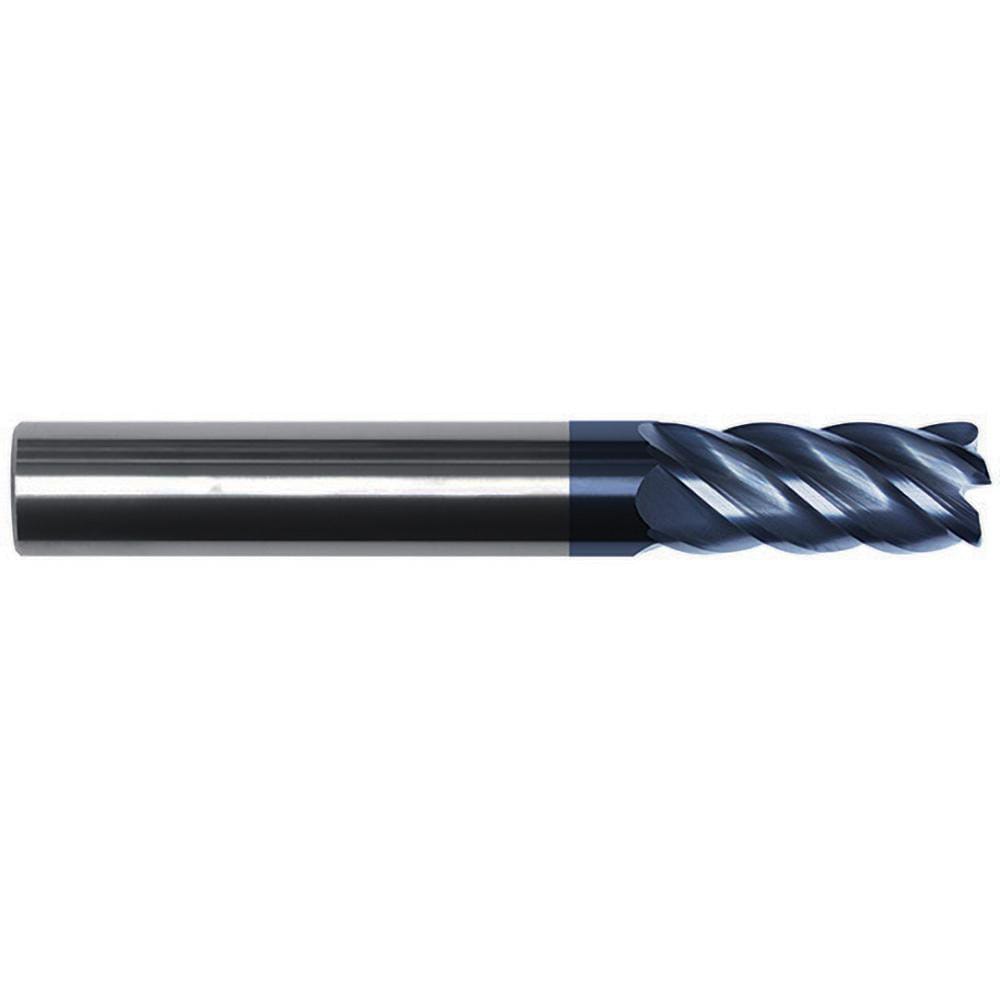

Roughing & Finishing End Mills; Mill Diameter (Fractional Inch): 3/4; Flute Type: Spiral; Number Of Flutes: 5; End Mill Material: Solid Carbide; Length of Cut (Inch): 1-5/8; Coating/Finish: AlTiN
Item #: 05736228
Brand: Internal Tool
Model #: 136-1965
Product Specifications
| Mill Diameter (Fractional Inch) | 3/4 |
| Flute Type | Spiral |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| Length of Cut (Inch) | 1-5/8 |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Shank Diameter (Inch) | 3/4 |
| Mill Diameter (Decimal Inch) | 0.7500 |
| Length of Cut (Decimal Inch) | 1.6250 |
| Shank Type | Straight-Cylindrical |
| Length Type | Regular |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Material Grade | Micrograin |
| Cutting Direction | Right Hand |
| Series | 136 |
| UNSPSC Code | 27112803 |
