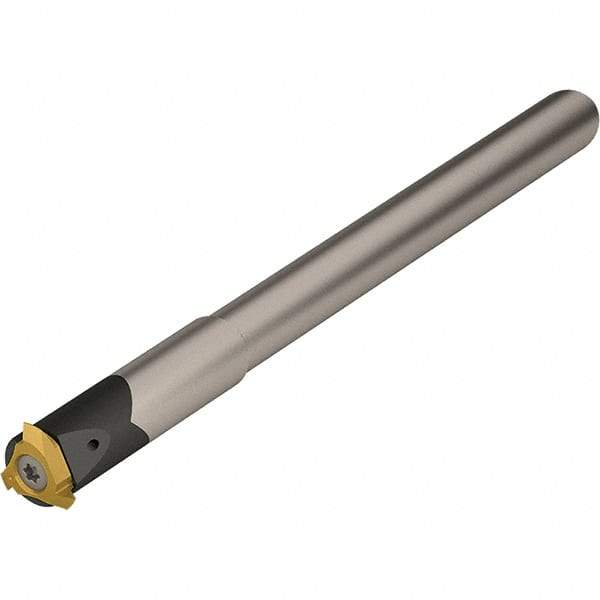

Vargus - TMSD, Internal or External, Right Hand, 45mm Max Depth of Cut, 0.79 to 1.77" Groove Width, Indexable Grooving Tool Holder - 7V Insert Compatibility, 0.354" Shank Height, 0.34mm Shank Width, 115mm OAL, Through Coolant
Item #: 61060505
Brand: Vargus
Model #: 67140
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 45.00 |
| Minimum Groove Width (Decimal Inch) | 0.7900 |
| Maximum Groove Width (Decimal Inch) | 1.7700 |
| Overall Length (mm) | 115.00 |
| Toolholder Style | TMSD |
| Insert Compatibility | 7V |
| Shank Height (Decimal Inch) | 0.3540 |
| Shank Width/Diameter (mm) | 0.34 |
| Series | CGMC |
| Through Coolant | Coolant Through |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | CGMC 9C13-45-7-3 |
